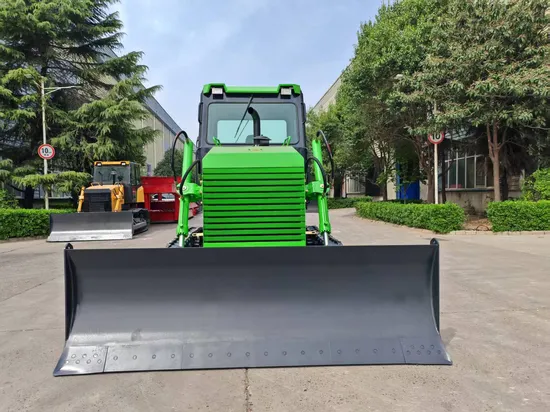

Versatile Crawler Bulldozer with Advanced Hydraulic System Features

Basic Info.

Model NO.	LIGE M5T
Transmission	Hydraulic - Mechanical Transmission
Walking Mode	Crawler
Load and Unload Method	Rear Dump
Engine Power	74~147kw
Condition	New
Color	Yellow
Transport Package	Cargo Ship
Specification	Length×Width×Heigh4600×3250X3100
Trademark	lige
Origin	China
Production Capacity	5000

Product Description

1,Engine: Choose the engine produced with British Ricardo joint-venture technology, which conforms to National II emission standard, and features low noise, large torque, energy efficient and environmental friendliness.
2,Main clutch comprises of dry, dual-sheet and common combined with, bigger in torque, simpler in construction, more reliable and easier in maintenance.
3,Gear box is applied to 4F plus 2R mechanical shift, higher in efficiency, simpier in operation, easier in maintenance and more reliable in operation.
4,Turning clutch: Choose dry and multi-piece turning clutch, manually operation with hydraulic pressure, easily maintaining, lightly and conveniently operation.
5,Filter applied in desert is more applicable for coal reserve site, desert and other special work condition.
6,Operation environment is fully closed, hexahedral cab with lower noise, effectively reducing noise beside your ear, extending your visual field and effectively improving comfort;
7,Electric system is characterized by electronic monitor, making real-time monitor for complete machine to assure normal operation;
8,Standard heating and ventilation equipment, air conditioner is optional.
9,Operation device: several devices such as direct- pouring shovel, environmentally shovel, angle shovel, coal-pushed shovel and soil scarifier are available for user.

Model	Unit	ZTM5T
Total weight	kg	12200
Max towing force	kN	115
Engine model		LR6A3Z-20
Engine rated power /speed	kw/ r/min	93/2000
Fuel consumption of the engine	g/kw.h	≤246
Engine max torque	N.m	526
Forward travel speed	km/h	2.4~10.6
Backward travel speed	km/h	:4.0~7.0
Track board with	mm	500
Land pressure	kPa	51
track-center distance	mm	1860
Overall dimension(L×W×H)	mm	4600×3250×3100
Bulldozer shovel(W×H)	mm	3250×1040
Blade max lifting height	mm	894
Blade max digging depth	mm	400
Twing equipment/Scar fier(optional)		Fixed type/three-tooth
